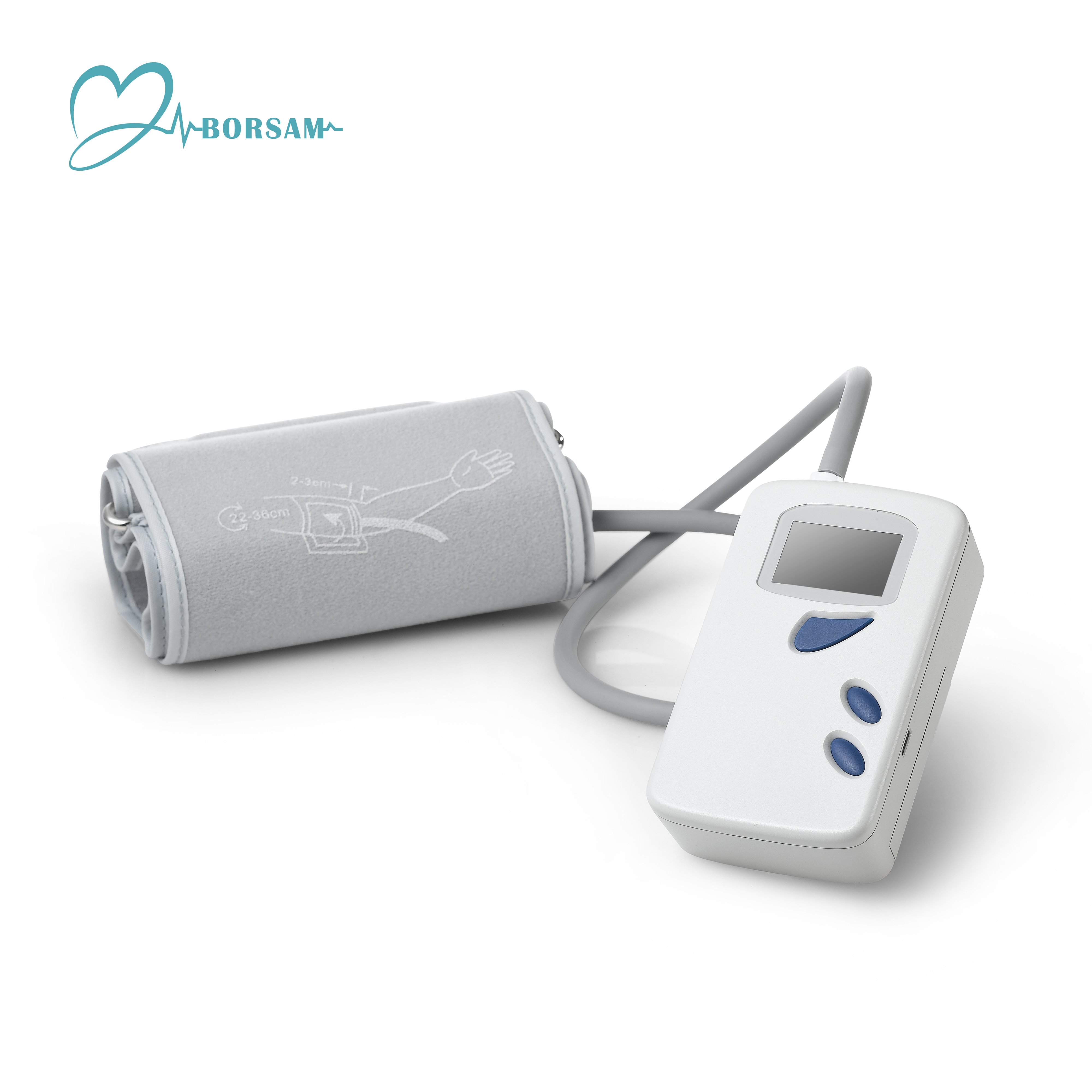

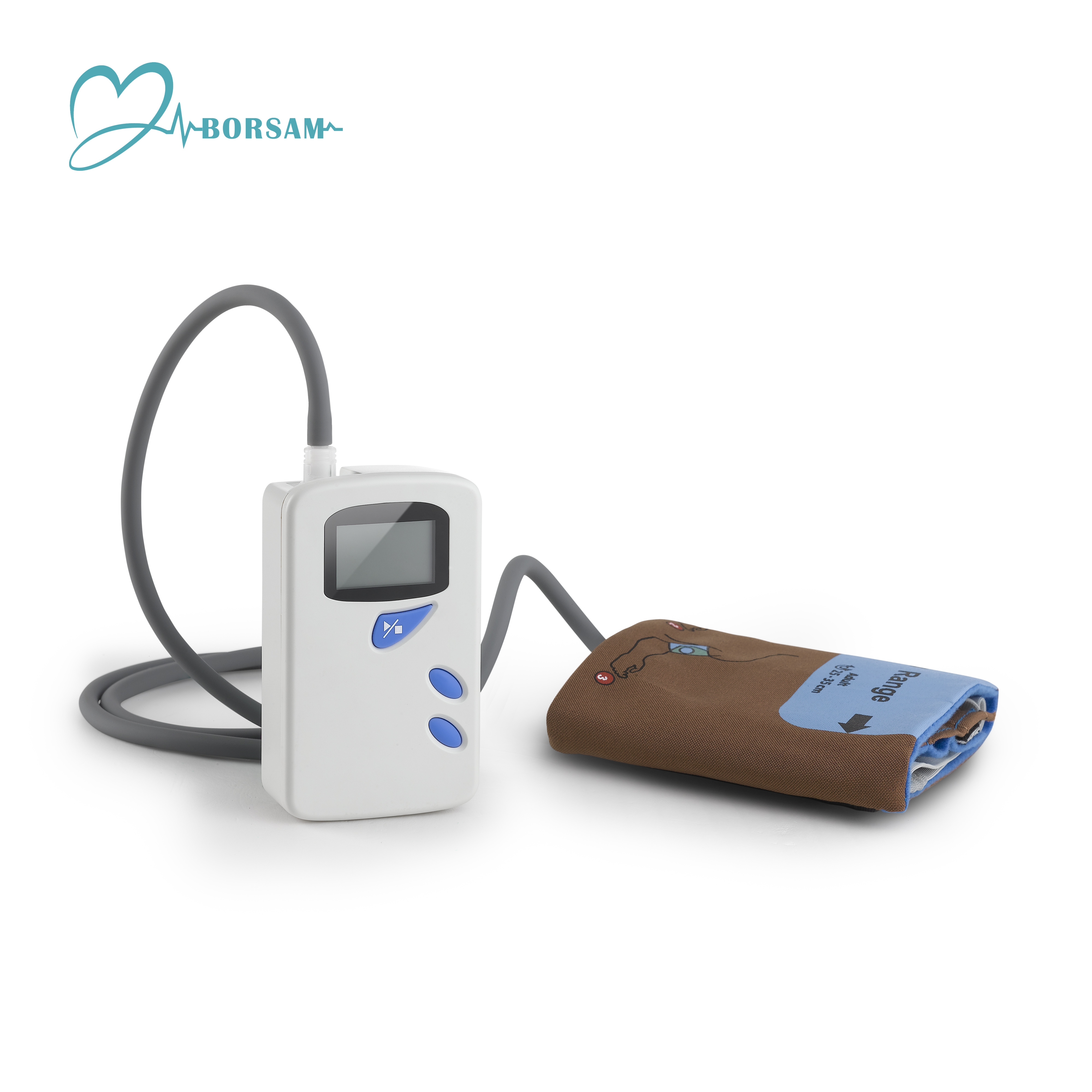

Borsam A Upper Arm Digital Blood Pressure Monitor Automatic Upper Arm
Features:
Ø 24 Hours ABPM with body position recording
Ø Motion tolerance, good consistence in ambulatory circumstance
Ø Clinical level, accurate reading
Ø Alarm function for out of BP limit reading
Ø Gravity sensor inside to determine 4 body positions: sit/stand, lying, slight motion, heavy motion
Ø Hypertension PC software, provide professional analysis
Specifications:
Name | Ambulatory Blood Pressure Monitor |
Model | ECHO |
Measurement method | Oscillometric method |
Systolic blood pressure measurement range measurement range | 40-260 mmHg |
Diastolic blood pressure measurement range | 20-210 mmHg |
Pulse rate measuring range | 40-200 bpm |
Resolution | Blood pressure: 1mmHg or 0.1Kpa; pulse rate: 1BPM |
Repeatability | The difference of repeated readings of each point is within 4mmHg in the statically continuous low-pressure mode |
Accuracy | Static Accuracy: ±3 mmHg; Pulse rate: ±3BPM |
System Validity | Complied with the standard of YY0670-2008 - 4.5.5 |
Security system | The rated range of cuff pressure: 0~290mmHg |
Power supply | 2 x AA alkaline batteries |
Data Memory | Flash memory stores up to 300 readings |
calibration | At least one time two years |
safety system | Maximum limit of inflation is 290mmHg, valve auto open when outage, maximum measuring of BP time is no less than 120 seconds |
Sampling period | Multiple independent programming cycle (5, 10, 15, 20, 30, 45, 60, 90, 120 minutes) 60, 90, 120 minutes) |
size
| About 114.5×67×32mm |
Net Weight | About 210g with batteries |
working environment | T: 5℃-40℃; HR: 10%-80%; gas pressure: 70KPa-106KPa |
Condition of storage | Stored under the condition of temperature (-20℃-+55℃), HR (no more than 95%) and atmospheric pressure (70KPa-106Kpa), no corrosive gases and well-ventilated. |
Data transmitted by | USB data cable |
Borsam A Upper Arm Digital Blood Pressure Monitor Automatic Upper Arm
Comfortable and quiet pressure measurement environment
Borsam ABPMs are through the noise test
For the user to create a quiet and stable measurement environment
Quiet use experience, low noise, low power consumption, long life
Borsam Biomedical Instruments Co.,ltd., located in University Innovation Park, Nanshan District, Shenzhen, is a professional enterprises in one of the science and technology committed to HOLTER (dynamic ECG) R & D, production and sales, access to a number of products patent. with the ISO13485 and CE approved.In 2014 was named the national high-tech enterprises.
We believe that all products and technologies must be in clinical practice, we always focus on the latest clinical information, provide the most advanced technical means to find more hidden diagnostic information. We work with the needy hospitals and research institutions to provide them with technical, means to achieve their research topics.
packaging: Standard Carton Packaged
Expess Company: DHL,UPS,Fedex,TNT
1.Sample fee Charge by client
2.Ready time:within 7 days after received sample fee
3.OEM is accepted
4.MOQ :50sets
5.Delivery time is within 25 days after confirmed order and received deposit.
6.All products have CE certificats
7.Copmany with IOS13485
8.Warrenty 3 years
