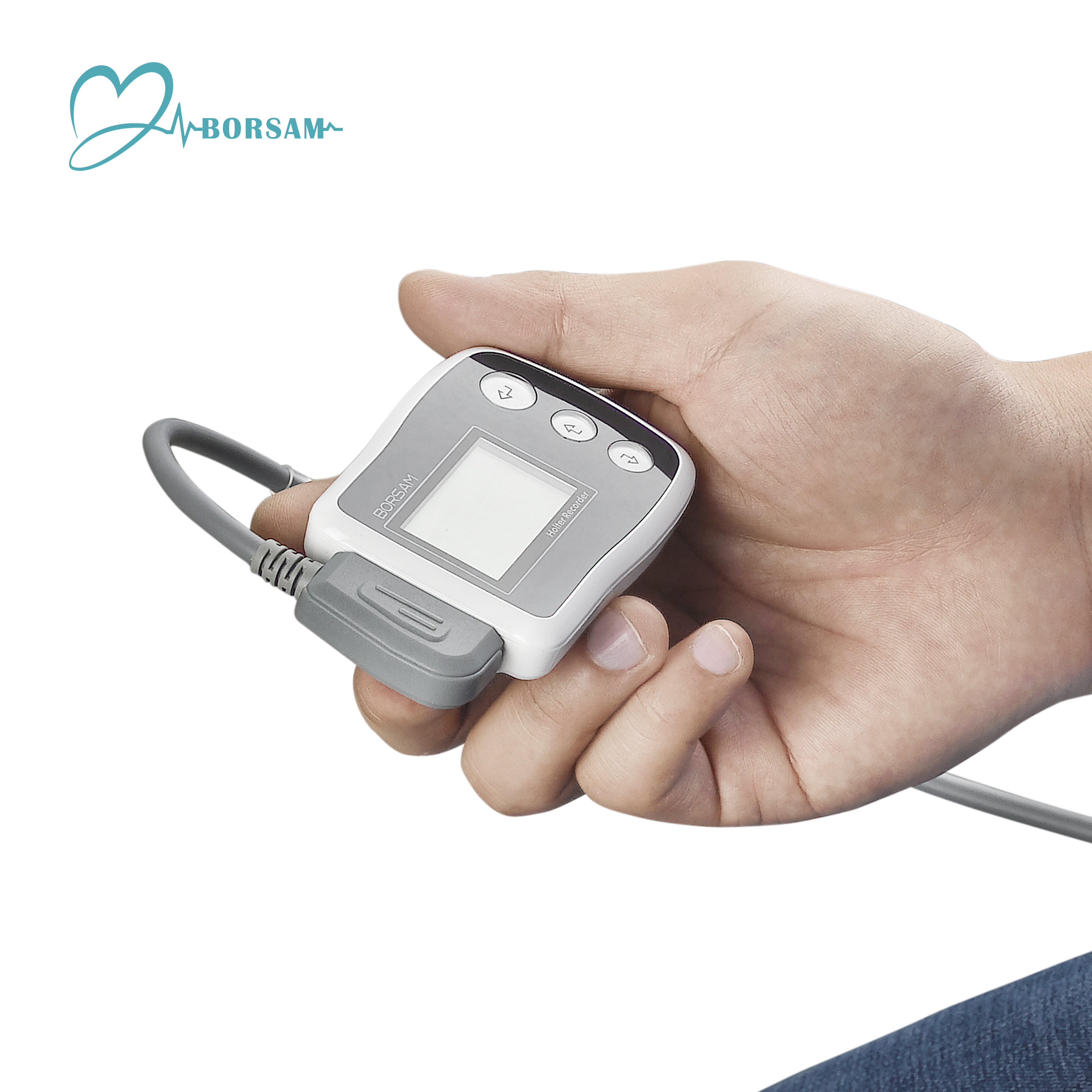

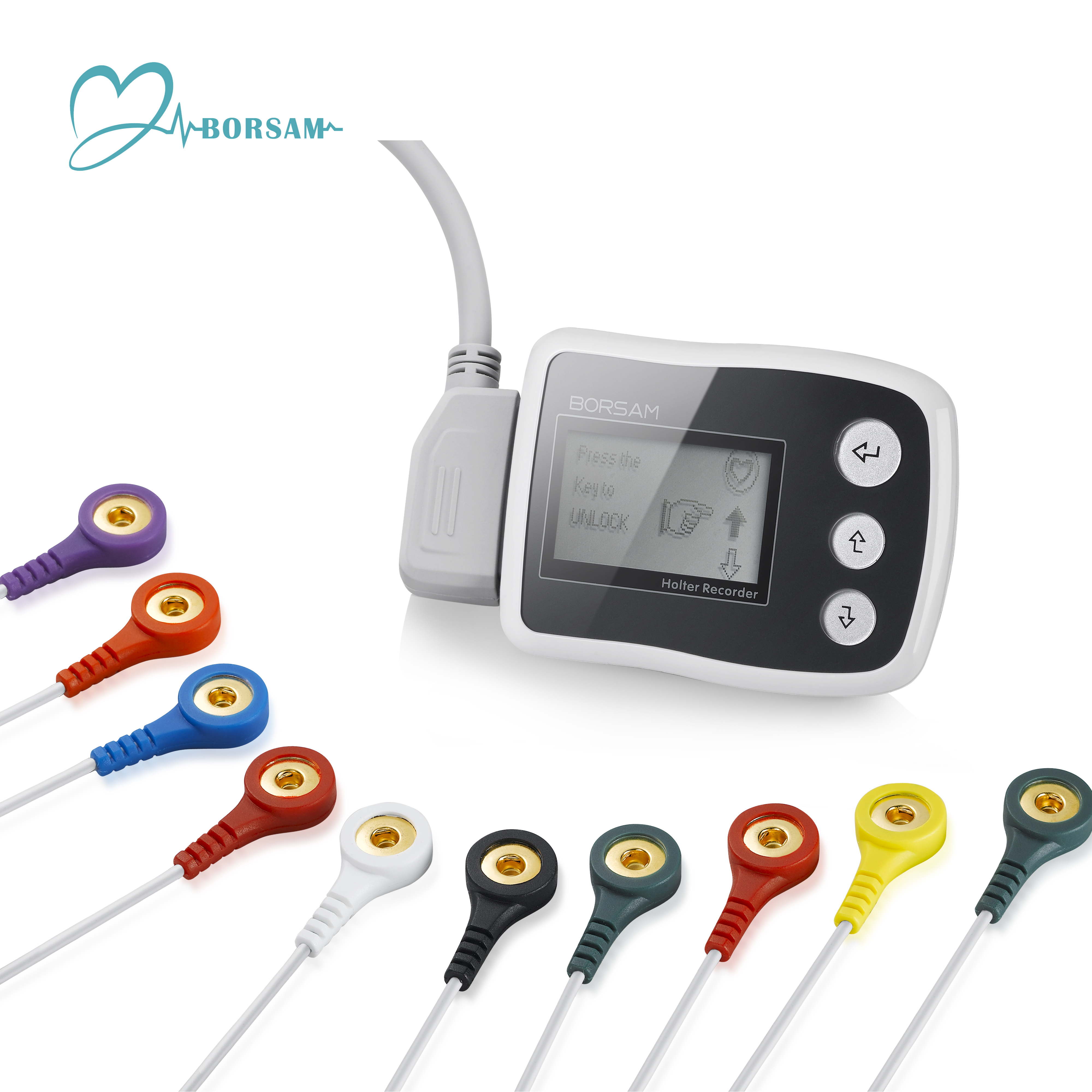

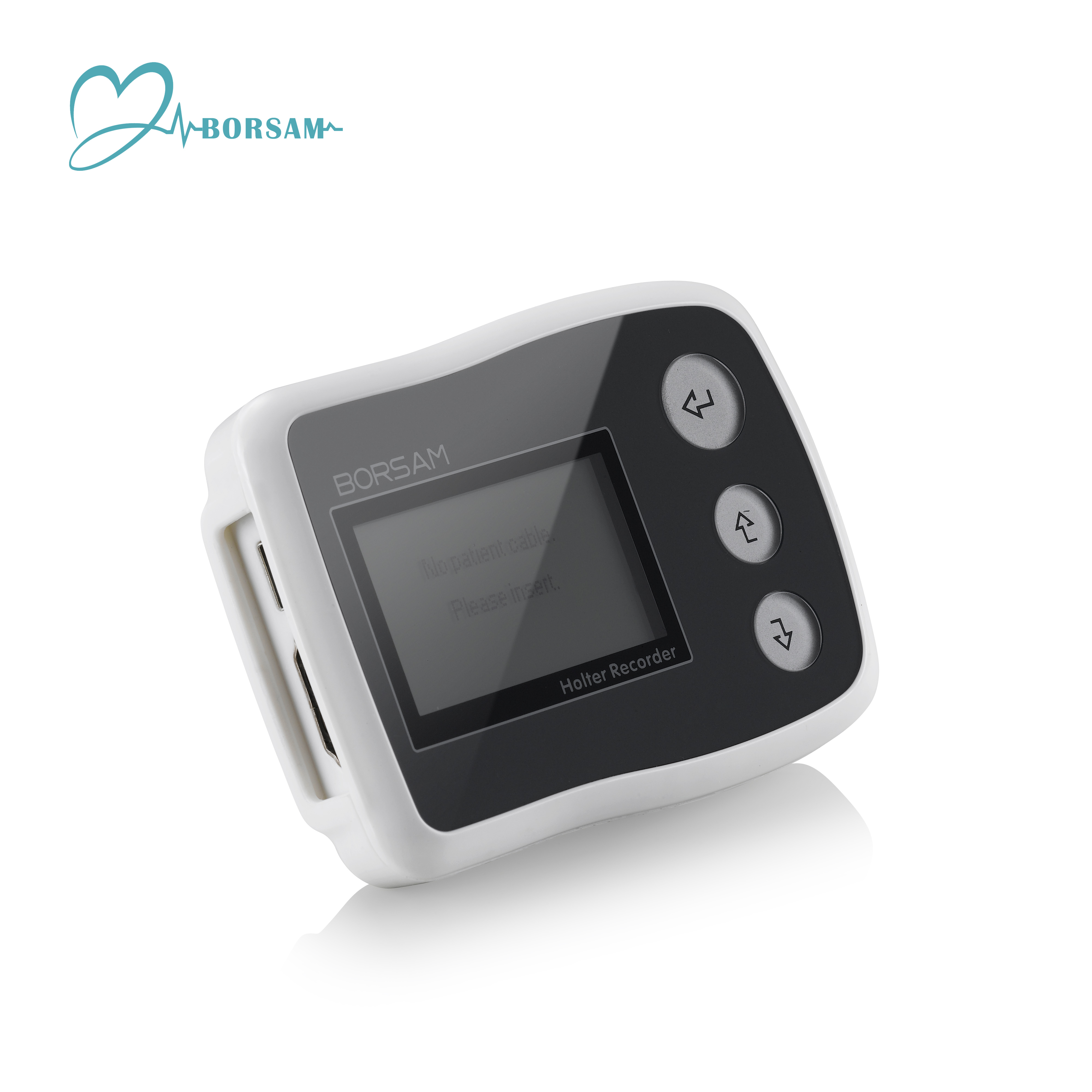

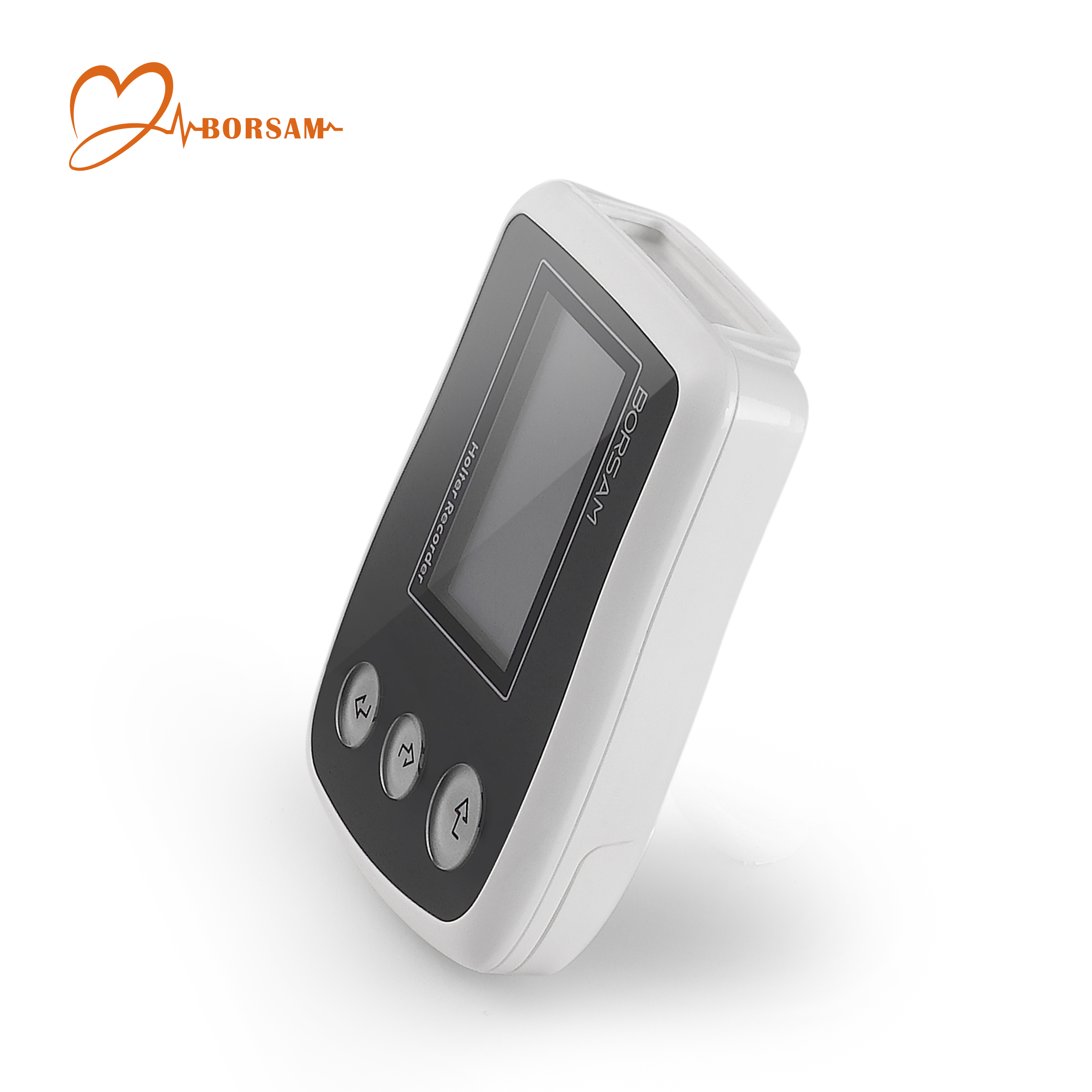

12 Leads ECG Portable Holter 3 Lead Holter ECG Cable with Clips
Main Applications (not limited to):
(1) arrhythmia or myocardial ischemia
(2) ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
Main Features:
• Outstanding on-screen graphics
• Remarkable speed to download patient data with an USB cable or Flash Card Reader
• Maximum patient comfort with small size & light weight
• very low power consumption with pacemaker sampling rate 20000Hz max
• Analysis is completed and ready to be printed within minutes after downloading
• Comprehensive, reliable Holter report
• 24 hours to 7 days Recording
Specifications:
Model | BS6930-12 |
Lead | 3 channel; 12 channels |
Sampling Rate | 128Hz/s-1024Hz/s (optional) |
A/D conversion | 8/12/16 bits |
Recording time | 24 hours - 48 hours (7 days for 3-ch) |
Frequency Response | 0.05Hz to 60 Hz |
Input Impedance | >6MΩ |
Gain | 1/2, 1, 2 |
Storage | SD Card (1GB Industrial-grade) |
CMRR | 80dB |
Pacemaker | Support |
Display | LCD to show ECG wave, time |
Language | English |
Data transfer | USB 2.0 or SD Card |

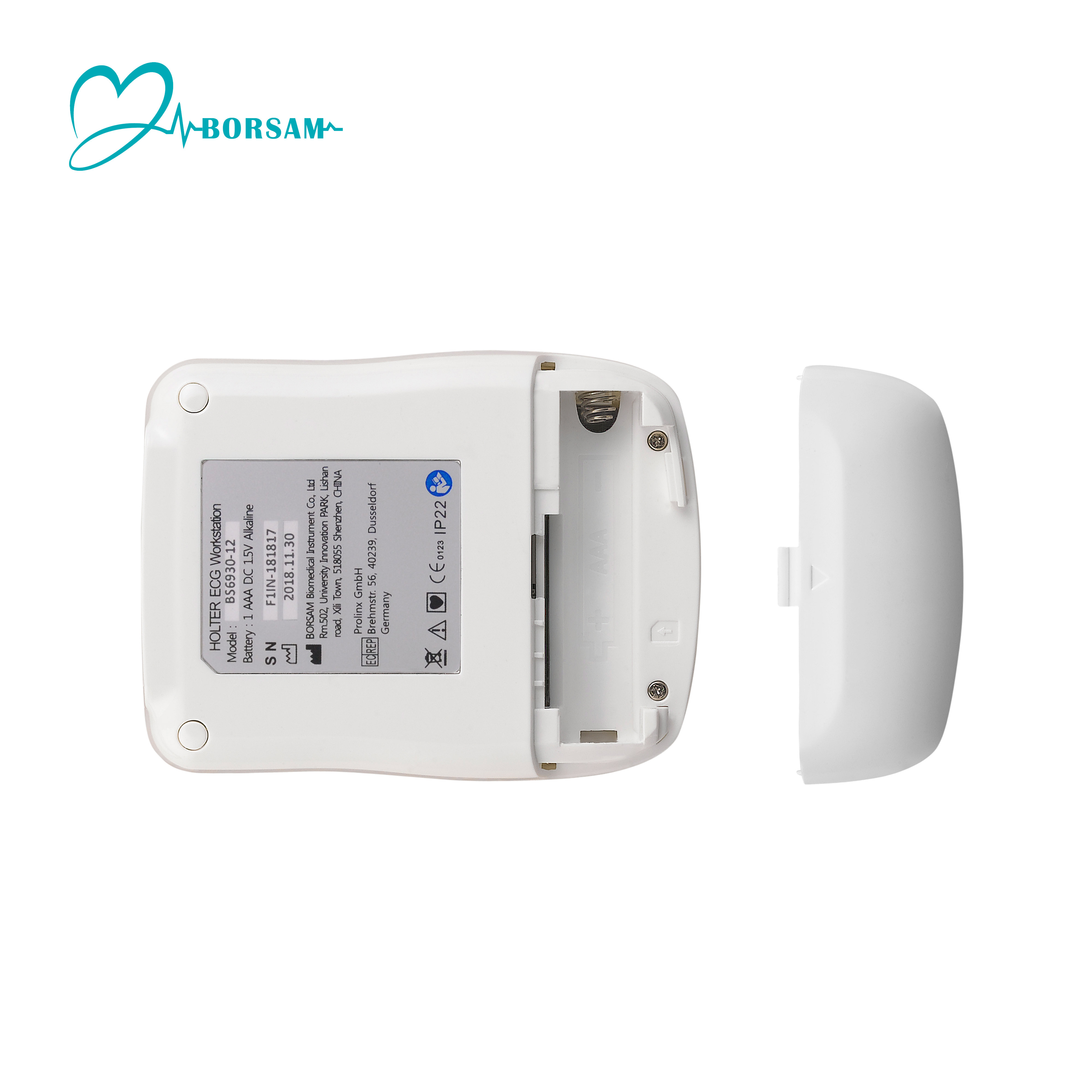

Battery | 1 x AAA battery |
Battery life | 96 Hours for 3 leads |
Size | 72mm×53mm×16mm |
Weight | 61g with battery |
12 Leads ECG Portable Holter 3 Lead Holter ECG Cable with Clips
iTengo+ give the best care for Health
All day wearing without any affect to daily life
iTengo+ ECG Holter
Slim design and light weight, easily get data of our body
Real time waveform display, know every beats without delay
Heart rate monitoring with high accuracy, easily control our health condition
12-channels/3-channels 2 in 1
20,000HZ Independent Pacemaker Channel
With pacing pulse detection function, pacemaker sampling rate up to 20,000HZ
Durable and lasting, lowest power consumption
Up to 7 days recording for 3-ch with only one AAA battery,Up to 48 hours recording for 12-ch with only one AAA battery
Borsam Biomedical Instruments Co.,ltd., located in University Innovation Park, Nanshan District, Shenzhen, is a professional enterprises in one of the science and technology committed to HOLTER (dynamic ECG) R & D, production and sales, access to a number of products patent. with the ISO13485 and CE approved.In 2014 was named the national high-tech enterprises.
We believe that all products and technologies must be in clinical practice, we always focus on the latest clinical information, provide the most advanced technical means to find more hidden diagnostic information. We work with the needy hospitals and research institutions to provide them with technical, means to achieve their research topics.
Our Factory
packaging: Standard Carton Packaged
Expess Company: DHL,UPS,Fedex,TNT
1.Sample fee Charge by client
2.Ready time:within 7 days after received sample fee
3.OEM is accepted
4.MOQ :50sets
5.Delivery time is within 25 days after confirmed order and received deposit.
6.All products have CE certificats
7.Copmany with IOS13485
8.Warrenty 3 years
